One of Hottest for Temporary Panel Fence - Polyester Geogrid – Jinbiao

Short Description:

Polyester Geogrid High strength warp knitted polyester geogrid is a kind of new high quality base material reinforcing the roadbed. It uses high strength polyester as its raw material and then warp knitted directionally and coated with special glue. Features: 1, The warp knitted polyester geogrid has the characteristics of high intension, low elongational ratio, erosion-resistant, 2, Aging-resistant, high occlusive force with soil or gravel, light weight, water drainage and so on. ...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

owing to very good support, a variety of high quality merchandise, aggressive costs and efficient delivery, we love an excellent name among the our clients. We are an energetic company with wide market for Acrylic Transparent Noise Barrier , Plexiglass Noise Barriers , Sound Barrier Panels , Now now we have recognized steady and long organization relationships with customers from North America, Western Europe, Africa, South America, extra than 60 countries and regions.

One of Hottest for Temporary Panel Fence - Polyester Geogrid – Jinbiao Detail:

Polyester Geogrid

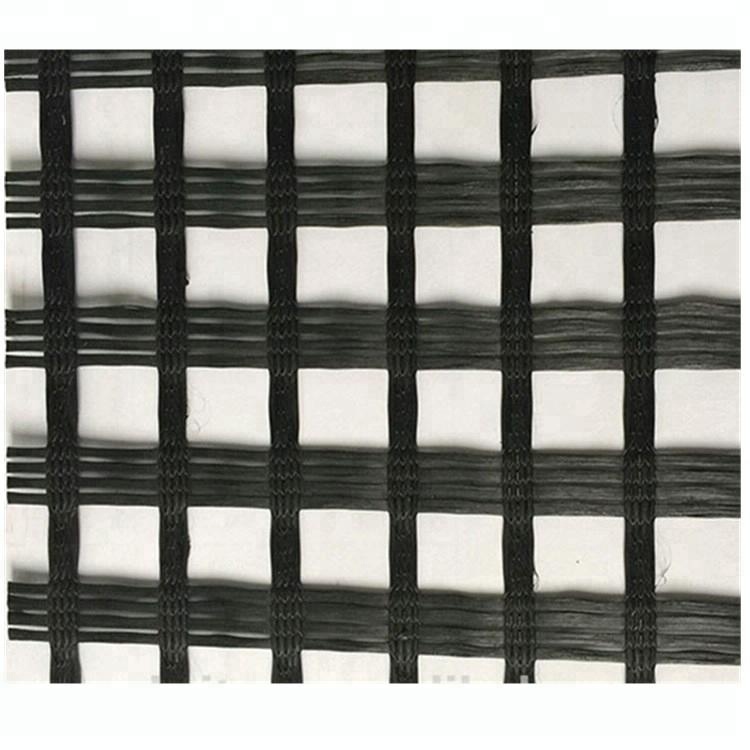

Polyester Geogrid (3).jpg

High strength warp knitted polyester geogrid is a kind of new high quality base material reinforcing the roadbed. It uses high strength polyester as its raw material and then warp knitted directionally and coated with special glue.

Features:

1, The warp knitted polyester geogrid has the characteristics of high intension, low elongational ratio, erosion-resistant,

2, Aging-resistant, high occlusive force with soil or gravel, light weight, water drainage and so on.

Specifications

Index		PE2020	PE3030	PE4040	PE5050	PE8080	PE100100	PE120120
Stretching Ratio %		13
Intensity KN/M	Vertical	20	30	40	50	80	100	120
Intensity KN/M	Horizontal	20	30	40	50	80	100	120
Center distance of the network mm		12.7 X 12.7 25.4 X 25.4 400 X 400
Breadth m		1~6

PE140140	PE160160	PE180180	PE200200	PE300300	PE400400	PE500500	PE600600
13
140	160	180	200	300	400	500	600
140	160	180	200	300	400	500	600
12.7 X 12.7 25.4 X 25.4 400 X 400
1~6


Features	Applications
•High Tear Strength	•Soil Stabilization
•Flexible and durable	•Subgrade impovement
•Excellent Creep Resistance	•Earth Embankments over piles
•UV resistance / Cost effective	•Landfill, Bridging of voids and sinkholes
•High chemical and biological resistance	•Retaining Retaining Walls / Steep Slopes
•High Tensile Strength and Low Elgongation	•Road, Runways or Pavement construction
•Optimun stability of the junction strength of the grid
•Increased pull-out resistance and compound strength
•High resistance to installation damage and ease of installation

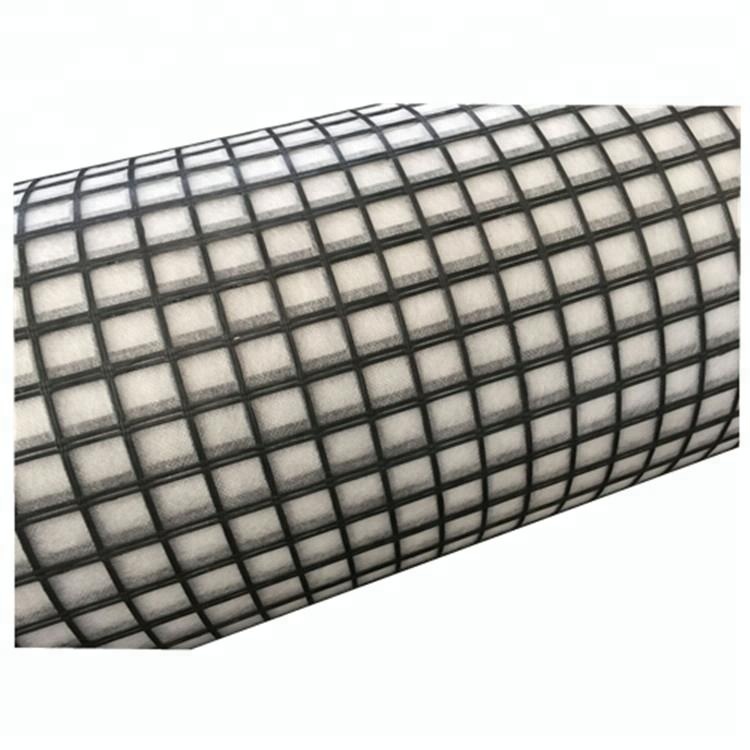

Polyester Geogrid (2).jpg

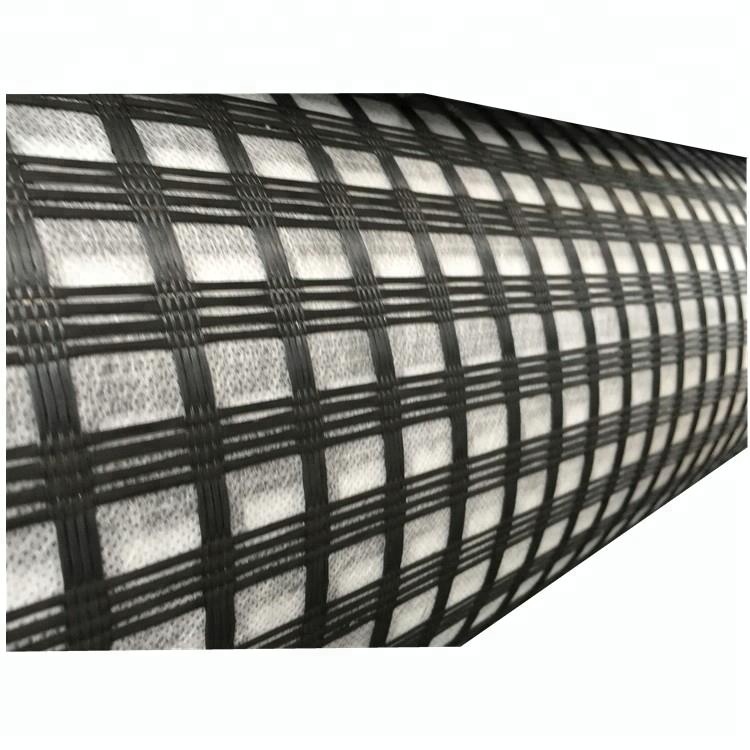

Polyester Geogrid (1).jpg

Packing & Delivery

Packaging
Roll Size	200m (L) * 6m(W) * 20cm-50cm (D)
Specification	20KN – 1200KN
Packaging Details	* Roll width and length can be made to order to meet specific project requirement. * White fabric bag or black PE bag outside or as required. * Paper tube can be provided for roll according to specific requirement. * Delivery period: generally within 15 days.

Packaging
Roll Size	200m (L) * 6m(W) * 20cm-50cm (D)
Specification	20KN – 1200KN
Delivery Details	* Production line can be adjusted to meet your specific requirement of delivery time. * We can arrange shippment by sea or by air accordingly. * Free samples are available. * Shipping can be tracked and updated to you accordingly.

Product detail pictures:

With reliable good quality system, great standing and perfect consumer support, the series of products and solutions produced by our organization are exported to quite a few countries and regions for One of Hottest for Temporary Panel Fence - Polyester Geogrid – Jinbiao, The product will supply to all over the world, such as: Botswana , Philippines , Hamburg , The company has numbers of foreign trade platforms, which are Alibaba,Globalsources,Global Market,Made-in-china. "XinGuangYang" HID brand products sell very well in Europe, America, Middle East and other regions more than 30 countries.

Cheap Geogrid
