Factory source Sound Barrier Audio - Mesh fence – Jinbiao

decorative wrought iron wire mesh fence and gate design

fsdf

a1

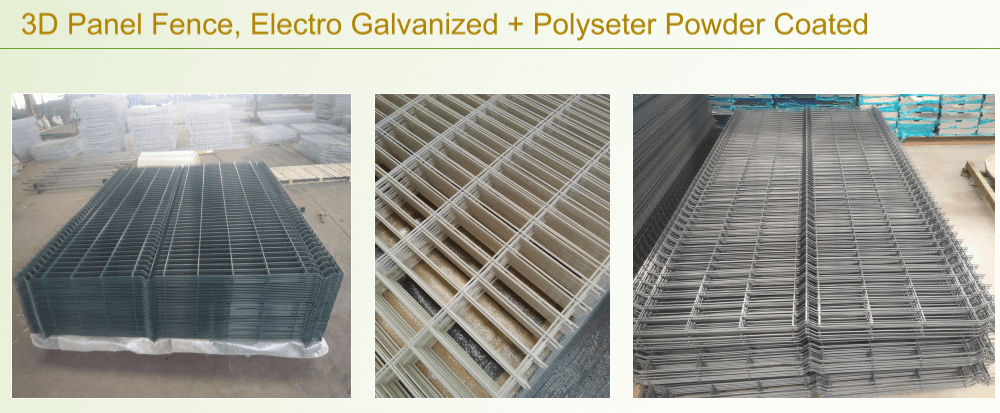

3D Panel Fence, Electro Galvanized + Polyseter Powder Coated

Panel Height

Panel Length

Wire Dia.

Mesh Size

Folds No.

H=1.03m

L=2.5m

4.0mm/5.0mm

50x200mm

2

H=1.23m

L=2.5m

4.0mm/5.0mm

50x200mm

2

H=1.53m

L=2.5m

4.0mm/5.0mm

50x200mm

3

H=1.73m

L=2.5m

4.0mm/5.0mm

50x200mm

3

H=2.03m

L=2.5m

4.0mm/5.0mm

50x200mm

4

Color

RAL6005 Green, RAL7016 Gray, RAL9005 Black, RAL9010 White

a2

a3

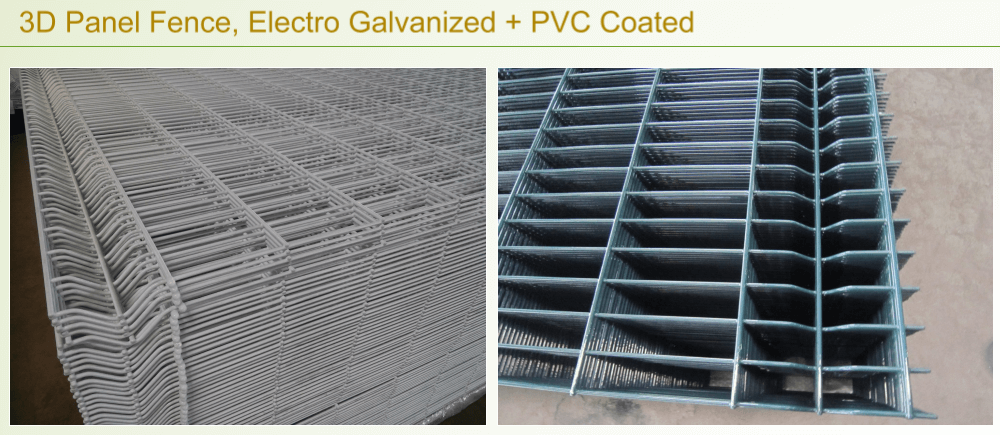

3D Panel Fence, Electro Galvanized + PVC Coated

Panel Height

Panel Length

Wire Dia.

Mesh Size

Folds No.

H=1.03m

L=2.5m

4.0mm/5.0mm

50x200mm

2

H=1.23m

L=2.5m

4.0mm/5.0mm

50x200mm

2

H=1.53m

L=2.5m

4.0mm/5.0mm

50x200mm

3

H=1.73m

L=2.5m

4.0mm/5.0mm

50x200mm

3

H=2.03m

L=2.5m

4.0mm/5.0mm

50x200mm

4

Color

RAL6005 Green, RAL9005 Black

a4a5

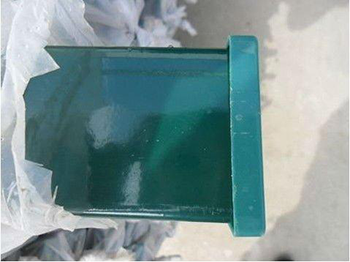

Square Post

Post OD.

Wall Thickness

Post Length

40x60mm

1.2mm



L=2.0m

L=2.2m

L=2.4m

L=2.5m

40x60mm

1.5mm

40x60mm

2.0mm

60x60mm

1.2mm

60x60mm

1.5mm

60x60mm

2.0mm



 sd



 a6

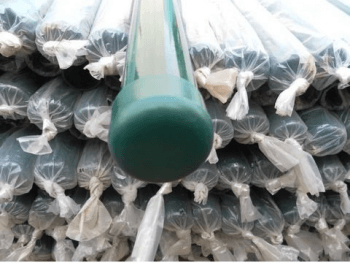

Round Post

Post OD.

Wall Thickness

Post Length

48mm

1.5mm

L=2.0m

L=2.2m

L=2.4m

L=2.5m

48mm

2.0mm

60mm

1.5mm

60mm

2.0mm

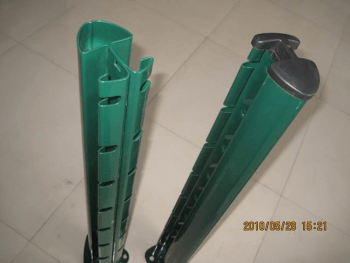

Peach Post

Post OD.

Wall Thickness

Post Length

50x70mm

1.0mm

L=2.0m

L=2.2m

L=2.4m

L=2.5m

50x70mm

1.2mm

70x100mm

1.0mm

70x100mm

1.2mm



 a7

a8 a9
